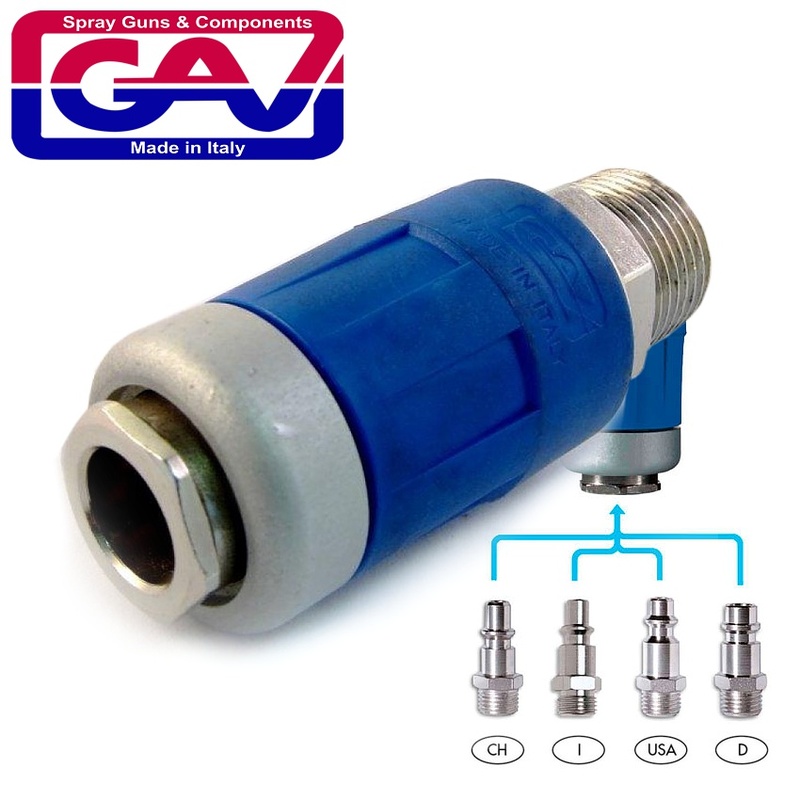

Airblock
Safety Quick Coupler
Made in Italy
1/2 inch male BSP thread
 |
 |
 |
| The air flow freely through the coupler | Push release backwards. The flow of air is cut and the pressure is vented. | The coupler is released from the connection |
The British Standard Pipe (BSP) is a family of standard screw thread types that has been adopted internationally for interconnecting and sealing pipe ends by mating an external (male) with an internal (female) thread and has been adopted as a standard scale used in plumbing fittings.
BSP = British Standard Pipe measured in inches
| Nom size |
Dash size |
TPI Threads Per Inch |
Thread pitch |
Major diameter |
Minor diameter |
Gauge length |
|||
| (in) | (in) | (in−1) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1⁄8 | −2 | 28 | 0.907 | 0.0357 | 9.728 | 0.383 | 8.565 | 0.3372 | 4±0.9 |
| 1⁄4 | −4 | 19 | 1.337 | 0.0526 | 13.157 | 0.518 | 11.445 | 0.4506 | 6±1.3 |
| 3⁄8 | −6 | 19 | 1.337 | 0.0526 | 16.662 | 0.656 | 14.950 | 0.5886 | 6.4±1.3 |
| 1⁄2 | −8 | 14 | 1.814 | 0.0714 | 20.955 | 0.825 | 18.633 | 0.7336 | 8.2±1.8 |
| 3⁄4 | −12 | 14 | 1.814 | 0.0714 | 26.441 | 1.041 | 24.120 | 0.9496 | 9.5±1.8 |
| 1 | −16 | 11 | 2.309 | 0.0909 | 33.249 | 1.309 | 30.292 | 1.1926 | 10.4±2.3 |
Airblock
Safety Quick Coupler
Truly universal - It accepts all types of standards
|
|
|
|
| The air flow freely through the coupler | Push release backwards. The flow of air is cut and the pressure is vented. | The coupler is released from the connection |
