DBB
Morticer Accessories
The
DBB Morticer, manufactured by Souber Tools, produces a perfect lock recess every
time. It is a genuine 5 minute morticer which is acclaimed by locksmiths and builders
alike.
Available as a complete kit, or as an upgrade for your standard morticer, this attachment has been developed for European-style rebated doors with off-centre lock mortices.
Using the same vertical bar & clamp system, the attachment has a side sliding shaft housing, so that mortices can be cut off-centre.
This flexibililty allows you to cut hinge recesses and the mortice for the strike plate on door frames less than 95mm thick.
Select the MORE INFO tab a see a step-by-step procedure on how to use the offset adapter.

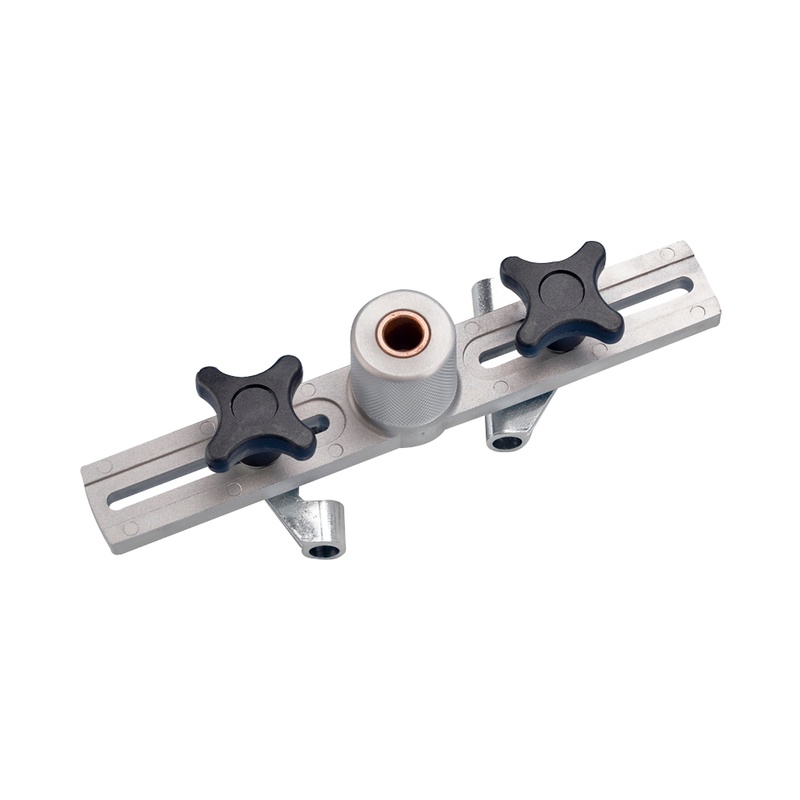

Kindly note: The item comes with knobs instead of kip lever handles as shown
|
Mark-up door, including centre of faceplate. |
Loosen top quick release lever by 30° |
|
|
Clamp morticer on the door. |
Insert shaft into housing. |
|
|
Loosen bottom quick release lever by 30°. |
Align the housing and shaft left or right to the required position E |
|
|
Lock the bottom quick release lever. |
Rest the lower housing slider against the bottom clamp. |
|
|
Release the bottom clamp screw and move it so that part of the shaft crosses C. Now lock the lower clamp. |
Move the housing up to the top clamp. Now loosen the top clamp. |
|
|
Move the housing and top clamps together to position B. |
Lock
both the top clamp and quick release lever. |
|
|
Choose cutter to suit correct size of lock body, then screw the cutter onto shaft until tight. |
1. Set depth stop. |
|
|
Cut mortice in usual up and down motion. |
1. Remove cutter with spanner provided. |
